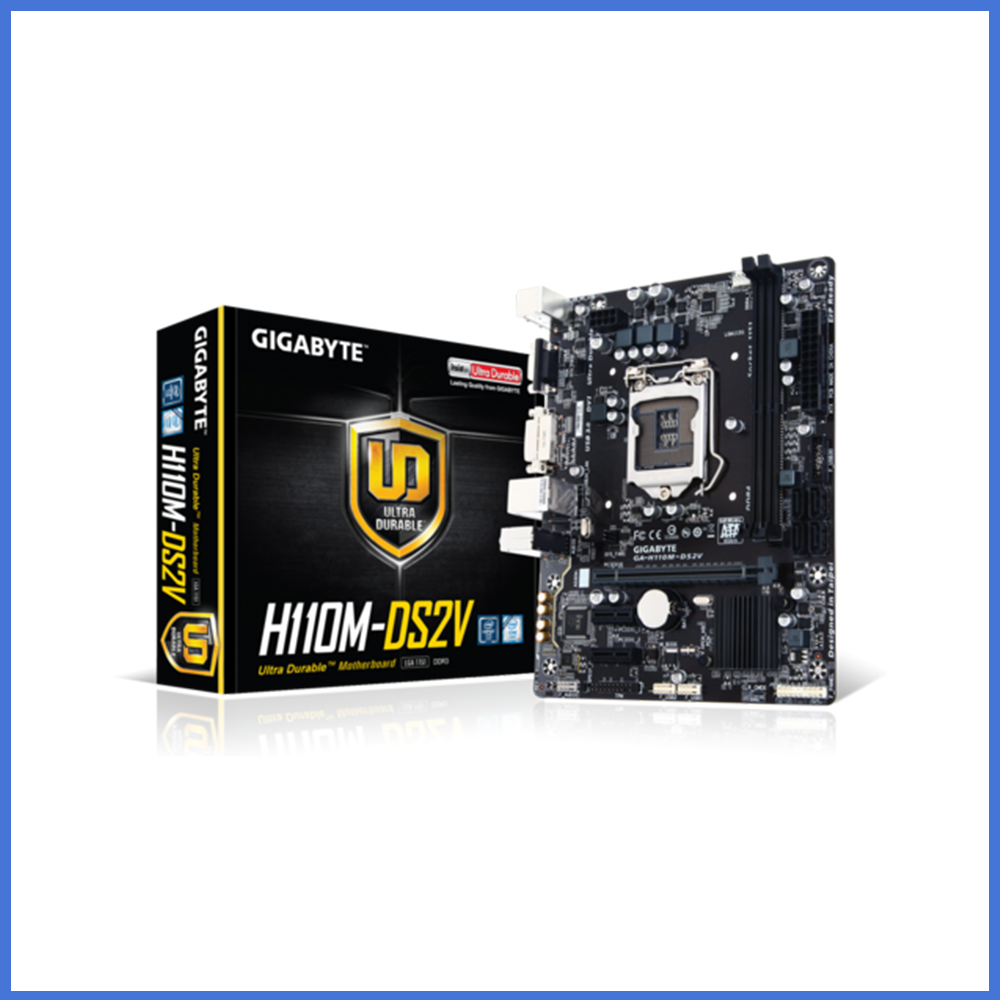

Gigabyte Mother board Intel GA-H110M ddr-4 DS2V Mini ATX

https://www.daffodil-bd.com/web/image/product.template/5226/image_1920?unique=aa24483

Key Features
Brand: Gigabyte
Model: Gigabyte GA-H110M-DS2V
Intel H110 Express Chipset
Supports 7th / 6th Generation Intel® Core™ Processors
2 x DDR4 DIMM
1 x PCI Express x16 slot

7,200.00 ৳ 7200.0 BDT 7,200.00 ৳

7,200.00 ৳

Not Available For Sale

    This combination does not exist.

    Contact Us
    Tags :
    Share :
    Terms and Conditions


    Supported CPU
    1. Support For 7th/6th Generation Intel® Core™ I7 Processors/Intel® Core™ I5 Processors/Intel® Core™ I3 Processors/Intel® Pentium® Processors/Intel® Celeron® Processors In The LGA1151 Package
      * For 7th Generation Intel® Core™ Processors Support Need To Update The Latest BIOS.
    2. L3 Cache Varies With CPU
    ChipsetIntel® H110 Express Chipset
    Supported Memory2 X DDR4 DIMM Sockets Supporting Up To 32 GB Of System Memory * Due To A Windows 32-Bit Operating System Limitation, When More Than 4 GB Of Physical Memory Is Installed, The Actual Memory Size Displayed Will Be Less Than The Size Of The Physical Memory Installed. Dual Channel Memory Architecture Support For DDR4 2400/2133 MHz Memory Modules Support For ECC UDIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 Memory Modules
    BIOS1 X 64 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    RAM TypeDDR4
    FromFactorMicro ATX Form Factor; 22.6cm X 17.4cm
    Internal I/O Ports1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 4 X SATA 6Gb/S Connectors 1 X CPU Fan Header 2 X System Fan Header 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB 3.0/2.0 Header 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module (TPM) Header 1 X Clear CMOS Jumper
    AudioRealtek® ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel * To Configure 7.1-Channel Audio, You Have To Use An HD Front Panel Audio Module And Enable The Multi-Channel Audio Feature Through The Audio Driver. Support For S/PDIF Out
    Expansion Slots
    1. 1 X PCI Express X16 Slot, Running At X16
      (The PCI Express X16 Slot Conforms To PCI Express 3.0 Standard.)
    2. 2 X PCI Express X1 Slots
      (All Of The PCI Express X1 Slots Conform To PCI Express 2.0 Standard.)
    LANRealtek® GbE LAN Chip (10/100/1000 Mbit)
    GraphicsIntegrated Graphics Processor- Intel® HD Graphics Support:
    1. 1 X D-Sub Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz
    2. 1 X DVI-D Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz
      * The DVI-D Port Does Not Support D-Sub Connection By Adapter.
    USB4 X USB 3.0/2.0 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 6 X USB 2.0/1.1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
    BrandGigabyte
